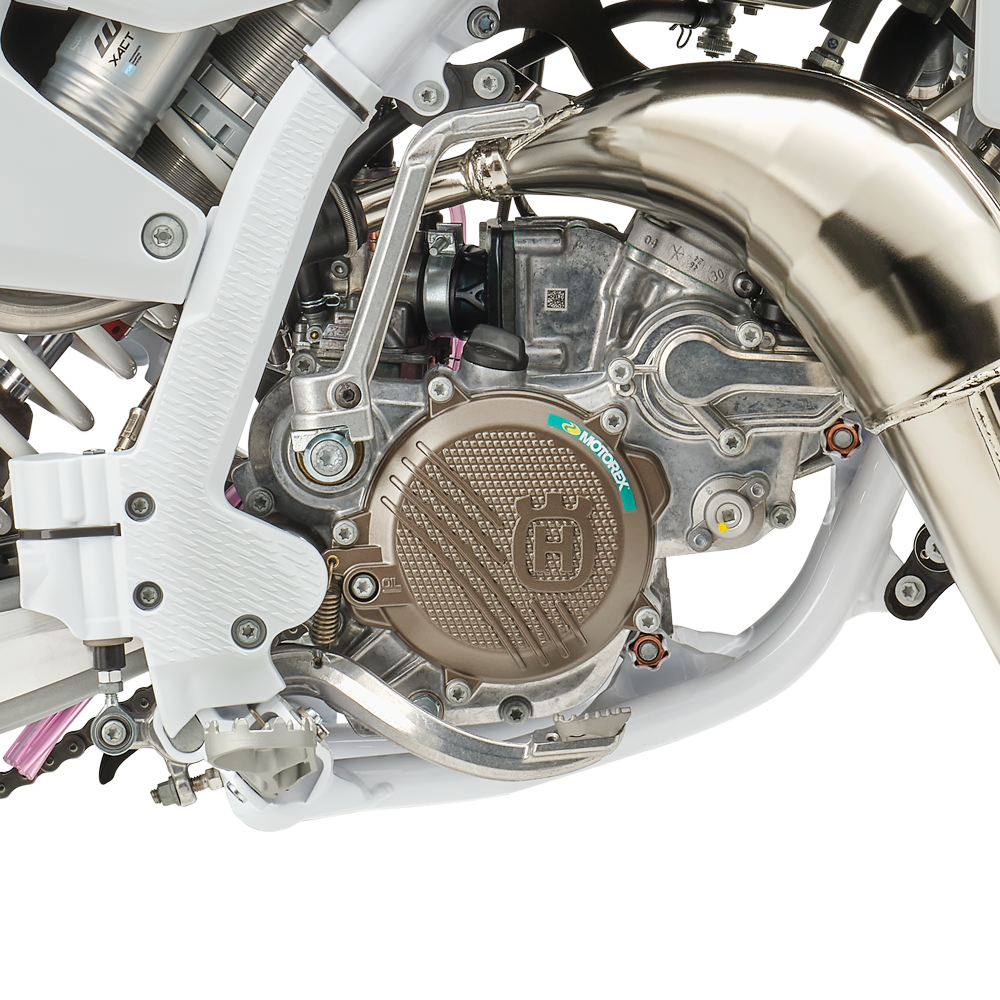

The TC 85 is the ultimate machine for young racers before they step up to the full-size line-up of motocross machines available from Husqvarna Motorcycles. Its high-revving, powerful 85 cc 2-stroke engine delivers unrivalled performance and is perfectly positioned inside a chromium-molybdenum steel chassis to aid handling.
Engine
- Primary drive20:64
- Transmission6-speed
- CoolingLiquid cooled
- Secondary gear ratio13:49
- StarterKickstarter
- Stroke48.95 mm
- Bore47 mm
- ClutchWet, multi-disc clutch, Formula hydraulics
- Displacement84.9 cm³
- EMSKeihin PWK 28
- Design1-cylinder, 2-stroke engine
Chassis
- Weight (without fuel)69 kg
- Tank capacity (approx.)5.4 l
- Wheelbase1282 mm
- Front brake disc diameter240 mm
- Rear brake disc diameter220 mm
- Front brakeDisc brake
- Rear brakeDisc brake
- Chain428, Non-sealed
- Frame designCentral-tube frame with double-cradle
- Front suspensionXACT 43 WP Upside-Down fork, Ø 43 mm
- Ground clearance333 mm
- HandlebarAluminium, tapered Ø 28/22 mm
- Rear suspensionXACT WP PDS mono shock
- Seat height871 mm
- SilencerAluminium
- Steering head angle63.5 °
- Rear subframe designAluminium / Polyamide Glass Fiber
- Suspension travel (front)278 mm
